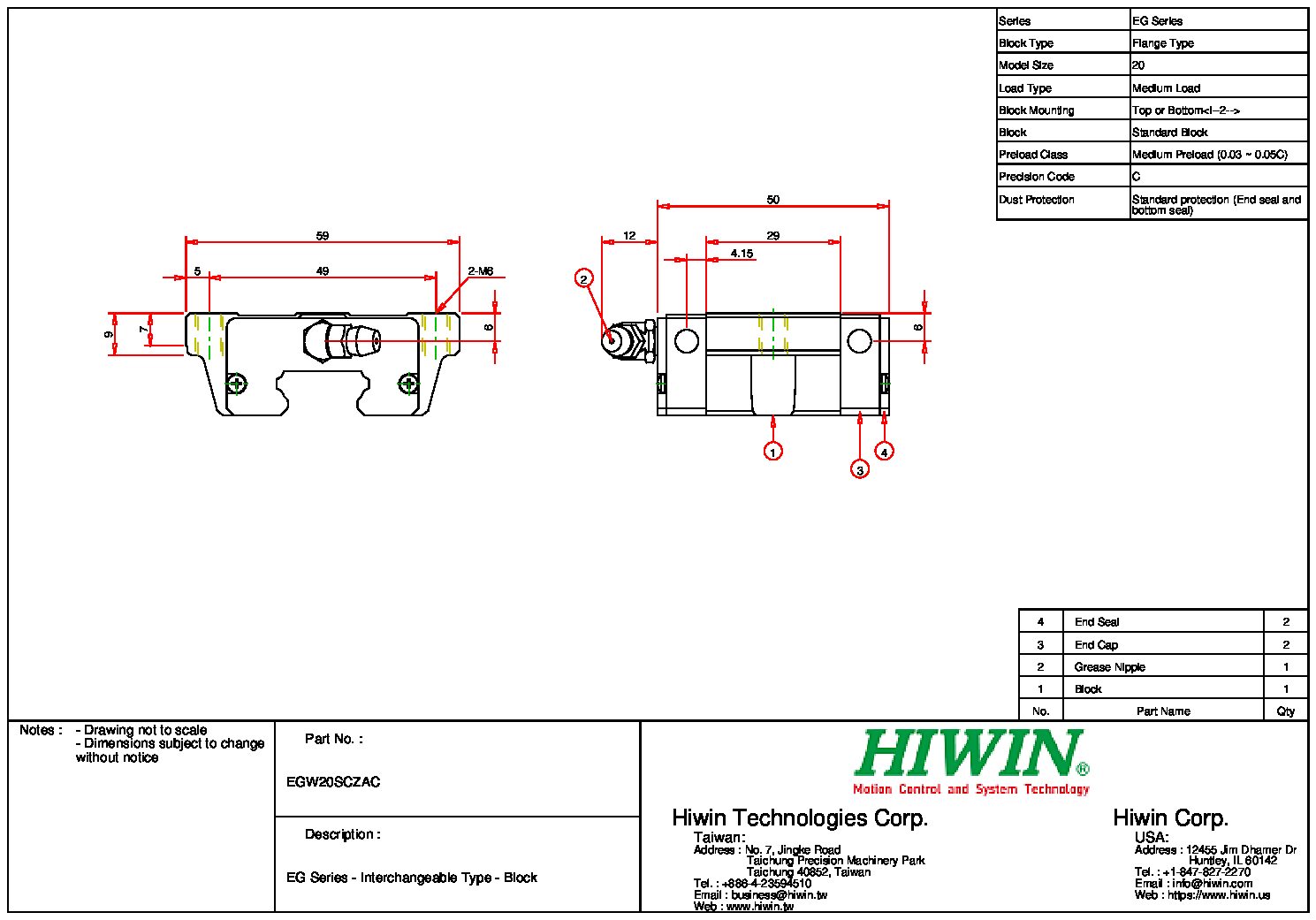

The EGW-20-SC-ZA-C in Brief
The HIWIN part number EGW-20-SC-ZA-C is a EG Series Linear Guide Block. The EGW-20-SC-ZA-C is compatible with 20 mm EG Series Guide Rail. It is suitable for medium load duty and has a flange type mounting surface that can accept mounting bolts through the top or bottom of the mounting surface. To help maintain precision for many industrial applications, the EGW-20-SC-ZA-C has a light preload and normal-level precision grade (in relation to other EG Series blocks).
EG Series – Low Profile Ball Type Linear Guideway
Features of EG Series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.
EG Series Application Examples
- Automation Devices
- High-Speed Transportation Equipment
- Precision Measuring Equipment
- Semiconductor Manufacturing Equipment
