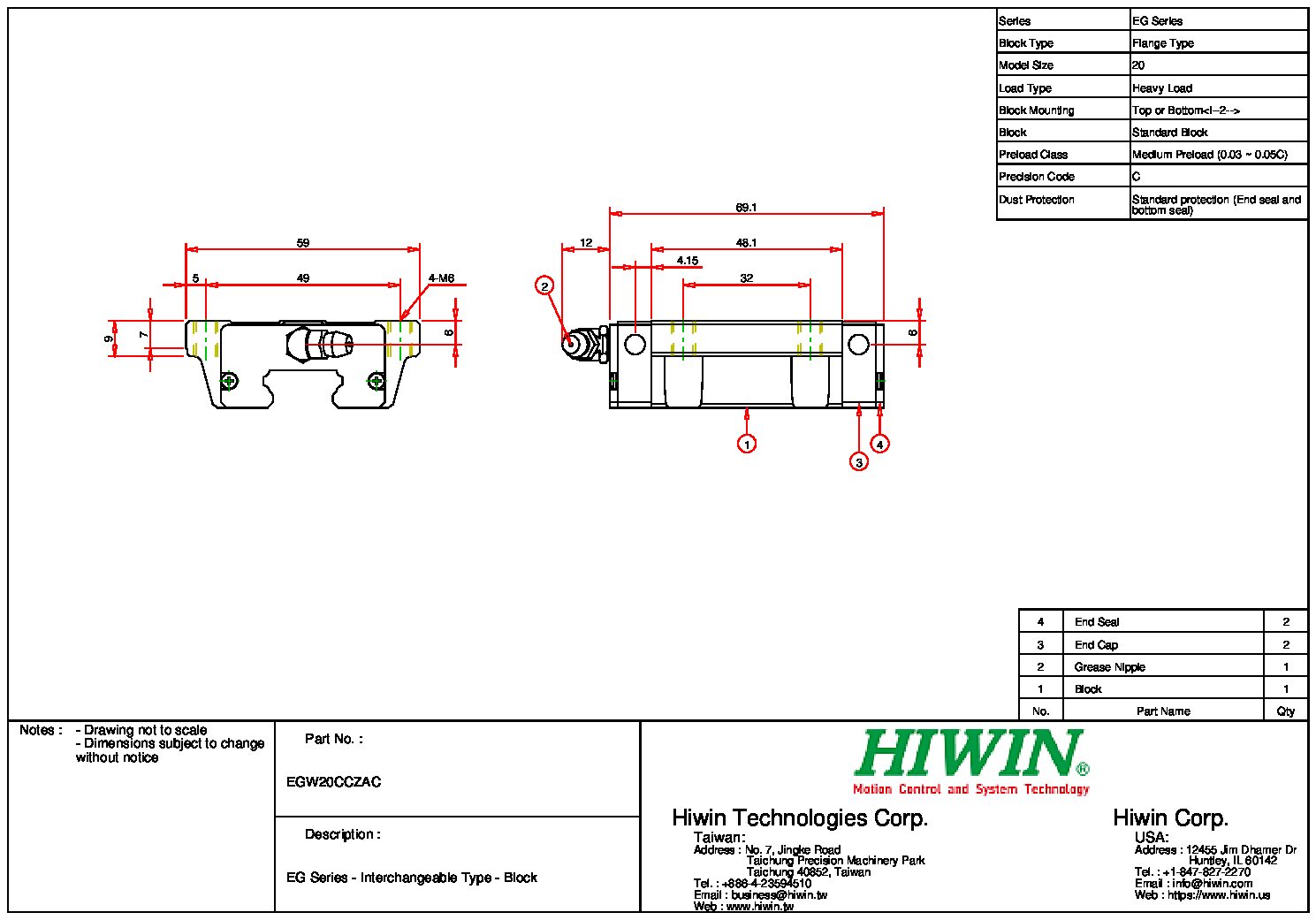

HIWIN EGW-20-CC-ZA-C Block

HIWIN
  • Series: EG Series
  • Block Type: W (Flange Type)
  • Model Size: 20 mm
  • Load Type: C (Heavy Load)
  • Block Mounting Type: C (Mounting from Top or Bottom)
  • Preload Code: ZA (Light Preload)
  • Precision Code: C (Normal)

10 in stock (can be backordered)

  • HIWIN EG-20-E2 Self-Lubricating Accessory Kit + $10.00
    HIWIN EG-20-E2/ZZ Self-Lubricating Accessory Kit + $10.00
    HIWIN EG-20-KK Dust Proof Accessory Kit + $40.00
    HIWIN EG-20-ZZ Dust Proof Accessory Kit + $40.00
  • Have STOVIL install the add-on kit for you.

The EGW-20-CC-ZA-C in Brief

The HIWIN part number EGW-20-CC-ZA-C is a EG Series Linear Guide Block. The EGW-20-CC-ZA-C is compatible with 20 mm EG Series Guide Rail. It is suitable for heavy load duty and has a flange type mounting surface that can accept mounting bolts through the top or bottom of the mounting surface. To help maintain precision for many industrial applications, the EGW-20-CC-ZA-C has a light preload and normal-level precision grade (in relation to other EG Series blocks).

EG Series – Low Profile Ball Type Linear Guideway

Features of EG Series

The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.

The retainer is designed to hold the balls in the block even when it is removed from the rail.

EG Series Application Examples

  • Automation Devices
  • High-Speed Transportation Equipment
  • Precision Measuring Equipment
  • Semiconductor Manufacturing Equipment

About STOVIL

STOVIL is an authorized HIWIN distributor and carries the full line of HIWIN’s HG Series, EG Series, WE Series, RG Series, MG Series, QH Series, QE Series, QW Series, and QR Series Linear Guideway products. STOVIL maintains a large and diverse stock of HIWIN Linear Guideway rail, block, and accessory maintenance kits at our facility in Kennesaw, GA. Our HIWIN Linear Guide Rail product offerings are constantly improving to better accommodate the various needs of our customers including standard lengths of each rail profile and configurators that allow cut-to-order custom rail service.

STOVIL has a large line card tailored to the Industrial Automation market. STOVIL carries many of the top brands in product lines such as: Linear Guideways, Actuators, Ball Screws, Motion Control, Safety Products, Miscellaneous Electrical, Cabinets & Enclosures, Maintenance, Robotics, Servo Motors & Drives, Couplers, VFDs, HMIs & PLCs, Gearboxes, Feedback Devices, and Stepper Motors & Drives. These brands include (but are not limited to): Yaskawa, RTA, Brother, SANYO DENKI, Hitachi, Wieland, Häwa/Haewa, ESA Automation, American Control Electronics, Atlanta Drive Systems, HIWIN, Neugart, Rollon, CGI, Bishop Wisecarver, EDrive, R+W Coupling Technology, Tsubaki, Kabel Schlepp, Nadella, Nexen, Schneeberger, and Exlar. STOVIL is always looking for new partnerships to better serve our customers.

Additional information

Shipping Weight 12.839724 oz
Shipping Dimensions 3.822 × 2.73 × 1.482 in
Series

Block Type

W, Flange Type

Model Size (mm)

20

Load Type

Heavy Load

Block Mounting

Top or Bottom

Preload Class

Light Preload, Light Preload (0.03 ~ 0.05C), ZA

Precision Code

C, Normal

Material

Carbon Steel
