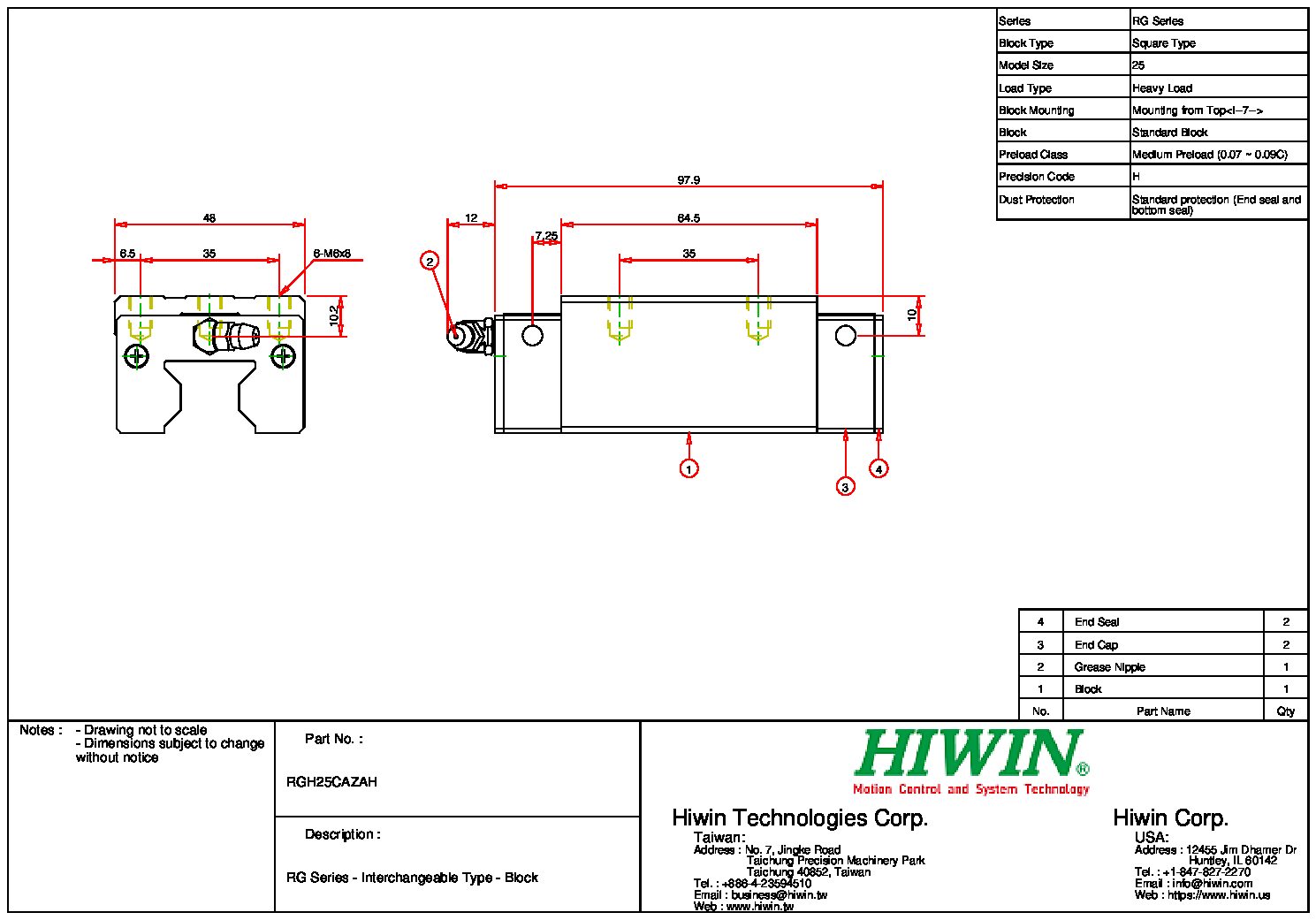

HIWIN RGH-25-CA-ZA-H Block

HIWIN
  • Series: RG Series
  • Block Type: H (Square Type)
  • Model Size: 25 mm
  • Load Type: C (Heavy Load)
  • Block Mounting Type: A (Mounting from Top)
  • Preload Code: ZA (Medium Preload)
  • Precision Code: H (High)

12 in stock (can be backordered)

  • HIWIN RG-25-E2/KK Self-Lubricating Accessory Kit + $20.00
    HIWIN RG-25-KK Dust Proof Accessory Kit + $40.00
  • Have STOVIL install the add-on kit for you.

The RGH-25-CA-ZA-H in Brief

The HIWIN part number RGH-25-CA-ZA-H is a RG Series Linear Guide Block. The RGH-25-CA-ZA-H is compatible with 25 mm RG Series Guide Rail. It is suitable for heavy load duty and has a square type mounting surface that can accept mounting bolts through the top of the mounting surface. To help maintain precision for many industrial applications, the RGH-25-CA-ZA-H has a medium preload and high-level precision grade (in relation to other RG Series blocks).

RG Series – High Rigidity Roller Type Linear Guideway

Advantages and features

The new RG series from Hiwin features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions. The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.

Optimal Design

FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.

The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area than balls so that the roller guideway features higher load capacity and greater rigidity.

Super High Load Capacity

With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial, and lateral directions. The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.

Operating Life Increased

Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore, stress concentration was reduced significantly and the RG series offers longer running life.

The acting load will affect the nominal life of a linear guideway. Based on the selected basic dynamic rated load and the actual load. The nominal life of ball type and roller type linear guideways can be calculated by Eq.2.5 respectively.

Eq.2.5: L = (C/P)^(10/3) * 100 km = (C/P)^(10/3) * 62 mi

If the environmental factors are taken into consideration, the nominal life is influenced greatly by the motion conditions, the hardness of the raceway, and the temperature of the linear guideway. The relationship between these factors is expressed in Eq.2.6.

Eq.2.6: L = ((fh*ft*C)/(fw*P))^(10/3) * 100 km = ((fh*ft*C)/(fw*P))^(10/3) * 62 mi

RG Series Application Examples

  • Automation Systems
  • Transportation Equipment
  • CNC Machining Centers
  • Heavy Cutting Machines
  • CNC Grinding Machines
  • Injection Molding Machines
  • Plano Millers
  • Devices Requiring High Rigidity
  • Devices Requiring High Load Capacity
  • Electric Discharge Machines

About STOVIL

STOVIL is an authorized HIWIN distributor and carries the full line of HIWIN’s HG Series, EG Series, WE Series, RG Series, MG Series, QH Series, QE Series, QW Series, and QR Series Linear Guideway products. STOVIL maintains a large and diverse stock of HIWIN Linear Guideway rail, block, and accessory maintenance kits at our facility in Kennesaw, GA. Our HIWIN Linear Guide Rail product offerings are constantly improving to better accommodate the various needs of our customers including standard lengths of each rail profile and configurators that allow cut-to-order custom rail service.

STOVIL has a large line card tailored to the Industrial Automation market. STOVIL carries many of the top brands in product lines such as: Linear Guideways, Actuators, Ball Screws, Motion Control, Safety Products, Miscellaneous Electrical, Cabinets & Enclosures, Maintenance, Robotics, Servo Motors & Drives, Couplers, VFDs, HMIs & PLCs, Gearboxes, Feedback Devices, and Stepper Motors & Drives. These brands include (but are not limited to): Yaskawa, RTA, Brother, SANYO DENKI, Hitachi, Wieland, Häwa/Haewa, ESA Automation, American Control Electronics, Atlanta Drive Systems, HIWIN, Neugart, Rollon, CGI, Bishop Wisecarver, EDrive, R+W Coupling Technology, Tsubaki, Kabel Schlepp, Nadella, Nexen, Schneeberger, and Exlar. STOVIL is always looking for new partnerships to better serve our customers.

Additional information

Shipping Weight 22.786982 oz
Shipping Dimensions 4.68 × 2.223 × 1.755 in
Series

Block Type

H, Square Type

Model Size (mm)

25

Load Type

Heavy Load

Block Mounting

Mounting from Top

Preload Class

Medium Preload, Medium Preload (0.07 ~ 0.09C), ZA

Precision Code

H, High

Material

Carbon Steel
