The MGN-9-C-ZF-H-M in Brief

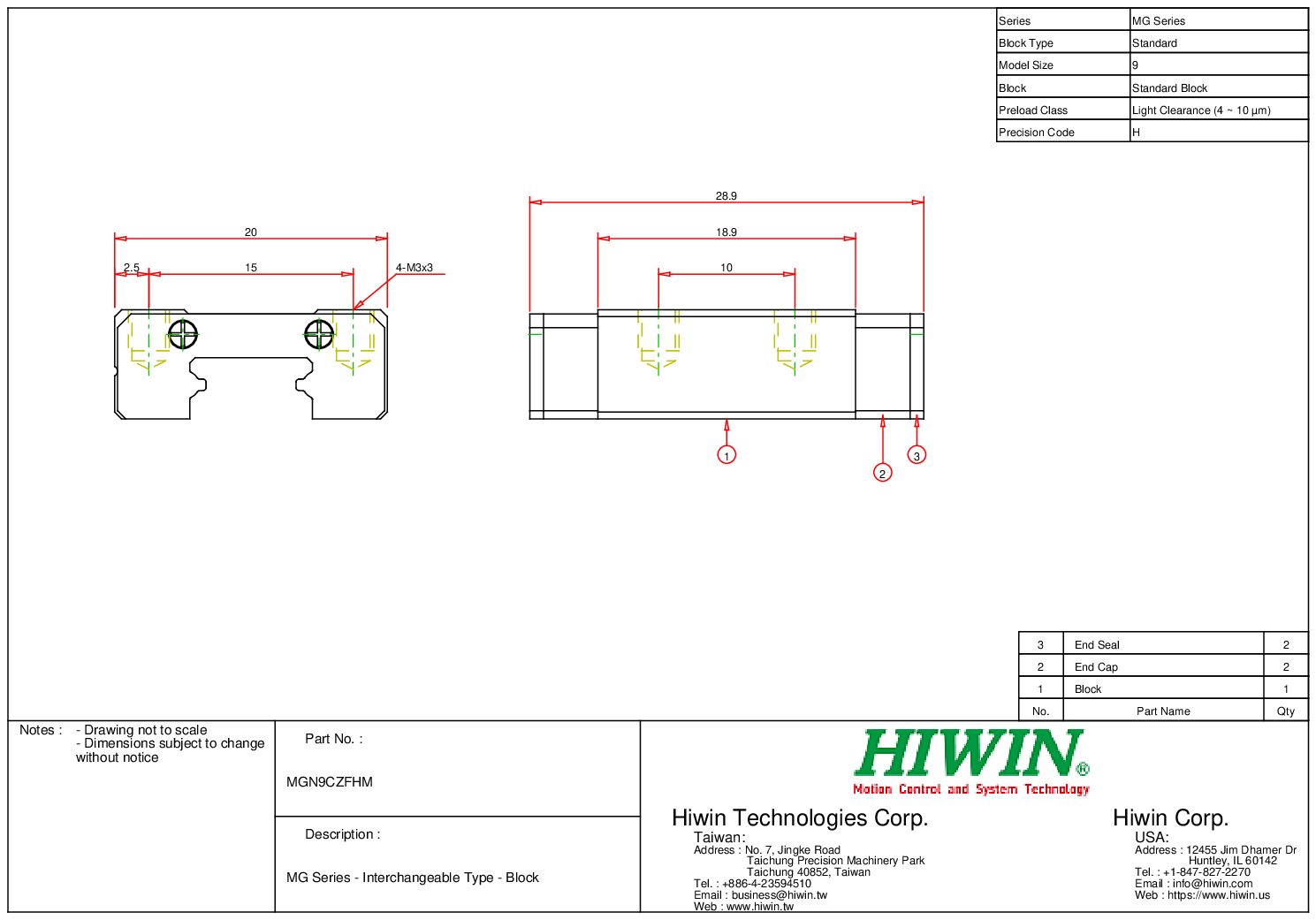

The HIWIN part number MGN-9-C-ZF-H-M is a MG Series, Narrow version (MGN), Linear Guide Block. The MGN-9-C-ZF-H-M is compatible with 9 mm MG Series (Narrow version) Guide Rail. It is suitable for miniature applications and very light load duty. It has a standard form square type mounting surface that can accept mounting bolts through the top of the mounting surface. To help maintain precision for many industrial applications, the MGN-9-C-ZF-H-M has a light clearance and high-level precision grade (in relation to other MG Series blocks).
MG Series – Miniature Linear Guideway
Features of MGN Series
Design features of narrow type miniature guideways- MGN:
- Tiny and light weight, suitable for miniature equipment.
- Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
- Specification with ball retainers would avoid ball falling when the blocks are removed from rails.
- Interchangeable types are available in certain sizes and precision grades.
MGN Series Application Examples
- Printer
- Robotics
- Precision Measuring Equipment
- Semiconductor Equipment
