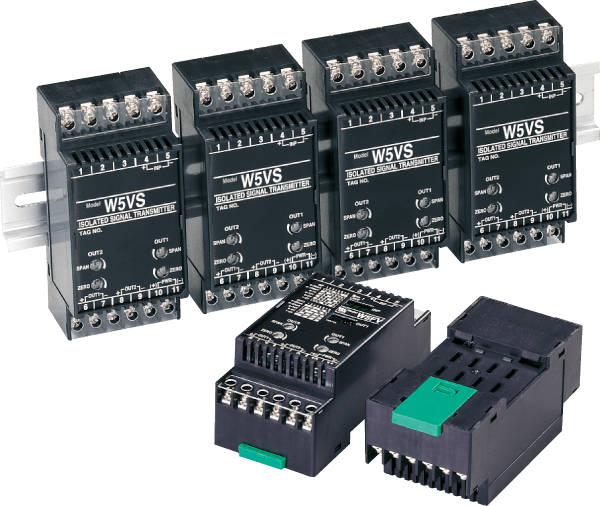

Low Profile Signal Splitters W5-UNIT Series
W5 Series Dual Output Transmitters are designed to accept a wide variety of process signal input and provide a standard and non-standard DC output.
Signal splitters with isolated dual outputs
Four-port isolation between the input, output 1, output 2, and power supply
Profile: 41 mm (1.77 in.)
W5 models can be installed on boards with a shallow depth.
Power supply for AC (85-264V) is also available*1
Supporting 85-264 V AC, 24 V DC, 11- 27 V DC, 110 V DC.
*1. CE marking is not available depending on the model.
Depending on the model.
Isolation and power supply
Four-port isolation
Dielectric strength: 2000 V AC @ 1 min.
(Between input, output 1, output 2, power supply, and ground)
Dielectric strength: 1500 V AC @ 1 min.
(Between output 1 and output 2)
AC power supply: 85-264 V AC
DC power supply: 24 V DC, 11-27 V DC, and 110 V DC
Specifications may vary depending on the model. For details, see the datasheet.
