Compact Plug-in Mini-M Series
M2 Series Signal Conditioners are designed to accept a largest range of process signal inputs and provide a standard and non-standard DC output.
Standard Type

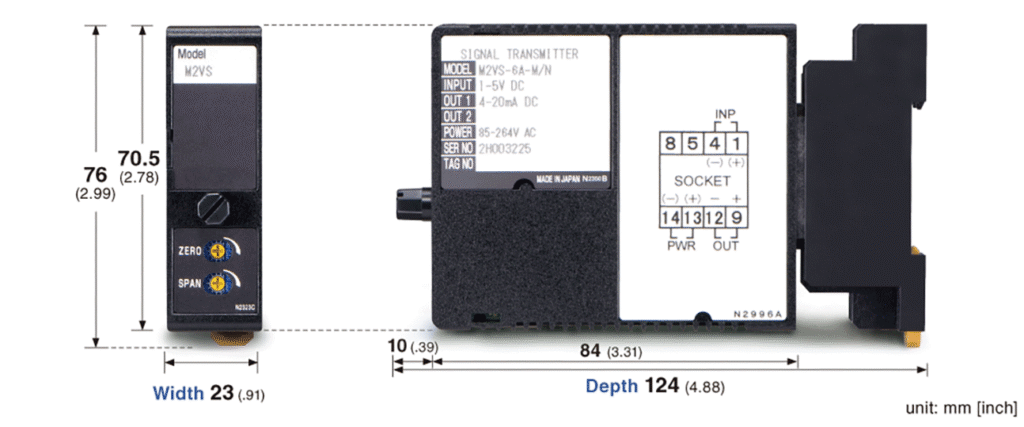

- M2 use a compact-size, plug-in socket base for quick installation or replacement of modules without disturbing wiring.
- 2000 V AC isolation
- Standard DIN rail or surface mounting
- Base socket included with modules
- Fixed range or PC programmable models selectable
- CE marking and UL/C-UL Class 1 Div 2 approval (selected models)
- Selectable 85-264 V AC, 100-240 V AC/24 V DC, 11-27 V DC, 110 V DC power input (M2 Series)
Depending on the model.
Standard Typeโ78 models
MG Co., Ltd. Signal Conditioners Series Catalog
Product Overview & System Integration
The MG Co. M2VS-AA-R/UL is an advanced, high-precision module designed for seamless signal conditioning across diverse industrial environments. This Compact Plug-in Mini-M Series unit accepts a dedicated 4โ20 mADC (Input resistance 250 ฮฉ) configuration and delivers a stable, standard 4โ20 mADC (Load resistance 750 ฮฉ max.) output to ensure precise process signal inputs reach your telemetry network without distortion.
Engineered for maximum reliability and quick setup, it features a space-saving plug-in socket base that mounts directly to standard DIN rails or surfaces without disrupting existing parallel wiring architectures. The unit operates via a robust 24 VDC (Operational voltage range: 24Vยฑ10%, ripple 10% p-p max.) specification and maintains highly responsive performance loops featuring a fast โค0.5 sec. (standard) response rating. Fully compliant with industrial compliance metrics, this model carries UL approval with CE marking certifications to safeguard operational efficiency in high-interference settings.
Ordering Note: This product is available on backorder with a standard 2-3 week lead time. Order online or email our sales team for a quote!
