Potentiometer Transmitter
Functions & Features
- Provides a DC output proportional to a potentiometer or slidewire position input
- Constant voltage excitation allows use with pots with total resistances from 100 Ω – 10 kΩ without affecting accuracy
- 50 % zero/span adjustments with minimal interaction
- Fast response type available
Typical Applications
- Tank levels
- Positions

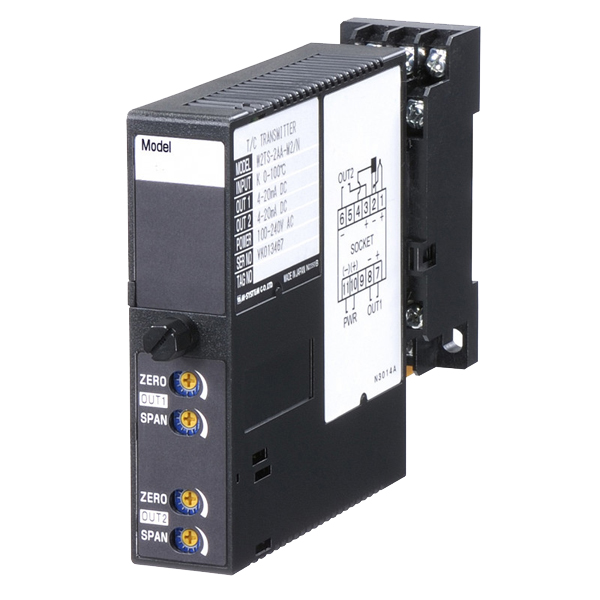

Compact Plug-in Signal Splitters Mini-MW Series
The W2 Series Signal Splitters provide two isolated outputs of independent ranges.

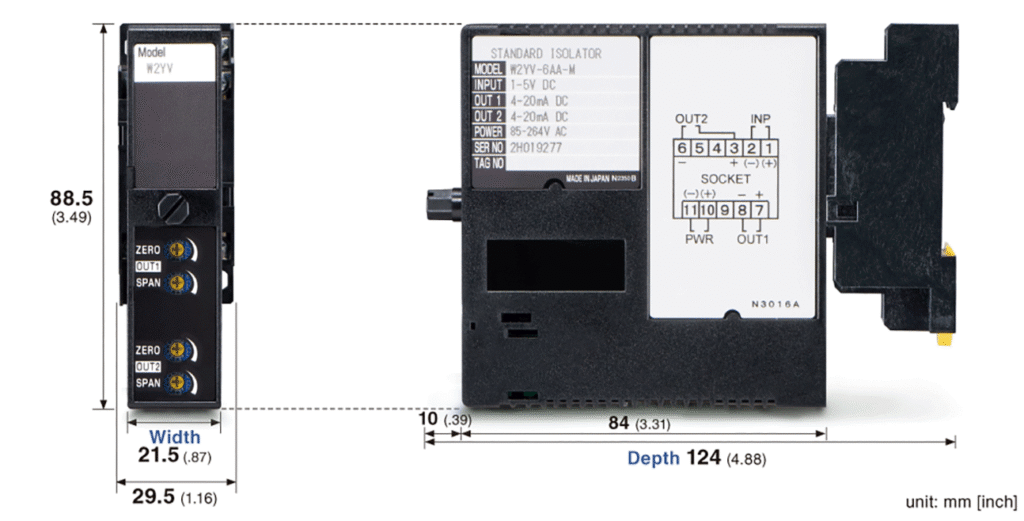

- W2 use a compact-size, plug-in socket base for quick installation or replacement of modules without disturbing wiring.
- 2000 V AC isolation

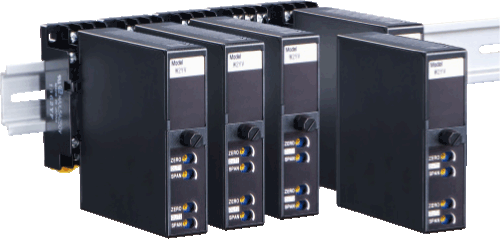

- Standard DIN rail or surface mounting
- Base socket included with modules
- Selectable 100-240 V AC/24 V DC power input
- Fixed range or PC programmable models selectable
- CE marking and UL/C-UL Class 1 Div 2 approval (selected models)
Depending on the model.
Product Overview & System Integration
The MG Co. W2MS-AA-R/UL is an advanced, high-precision signal splitter module. It provides stable DC outputs proportional to your field instrumentation configurations. This space-saving Mini-MW Series module supports a dedicated 100 Ω – 10 kΩ input profile. Consequently, its high-density engineering ensures perfect tracking accuracy for demanding industrial automation frameworks. Furthermore, it splits your process streams cleanly by delivering a dedicated 4–20 mA DC (Load resistance 750 Ω max.) loop on Output 1 and an independent 4–20 mA DC (Load resistance 350 Ω max.) loop on Output 2.
This dual-output module utilizes a compact, plug-in socket base to simplify industrial field maintenance. This design allows for quick installation or replacement of modules without disturbing existing parallel wire paths. Additionally, the unit features convenient front-facing control adjustments. These layouts provide zero and span fine-tuning variables with minimal user interaction during runtime deployment.
The unit operates reliably via a robust 24 VDC (Operational voltage range 24 V ±10 %, ripple 10 %p-p max.) power specification. Specifically, it maintains a tightly regulated operational voltage range and a fast performance loop rating. It mounts directly to standard DIN rails or flat surfaces using the included base socket. Thanks to its heavy-duty 2000 V AC dielectric isolation strength and certified UL and CE compliance, this module safeguards your control architectures against aggressive ground loops and high-frequency electrical noise.
