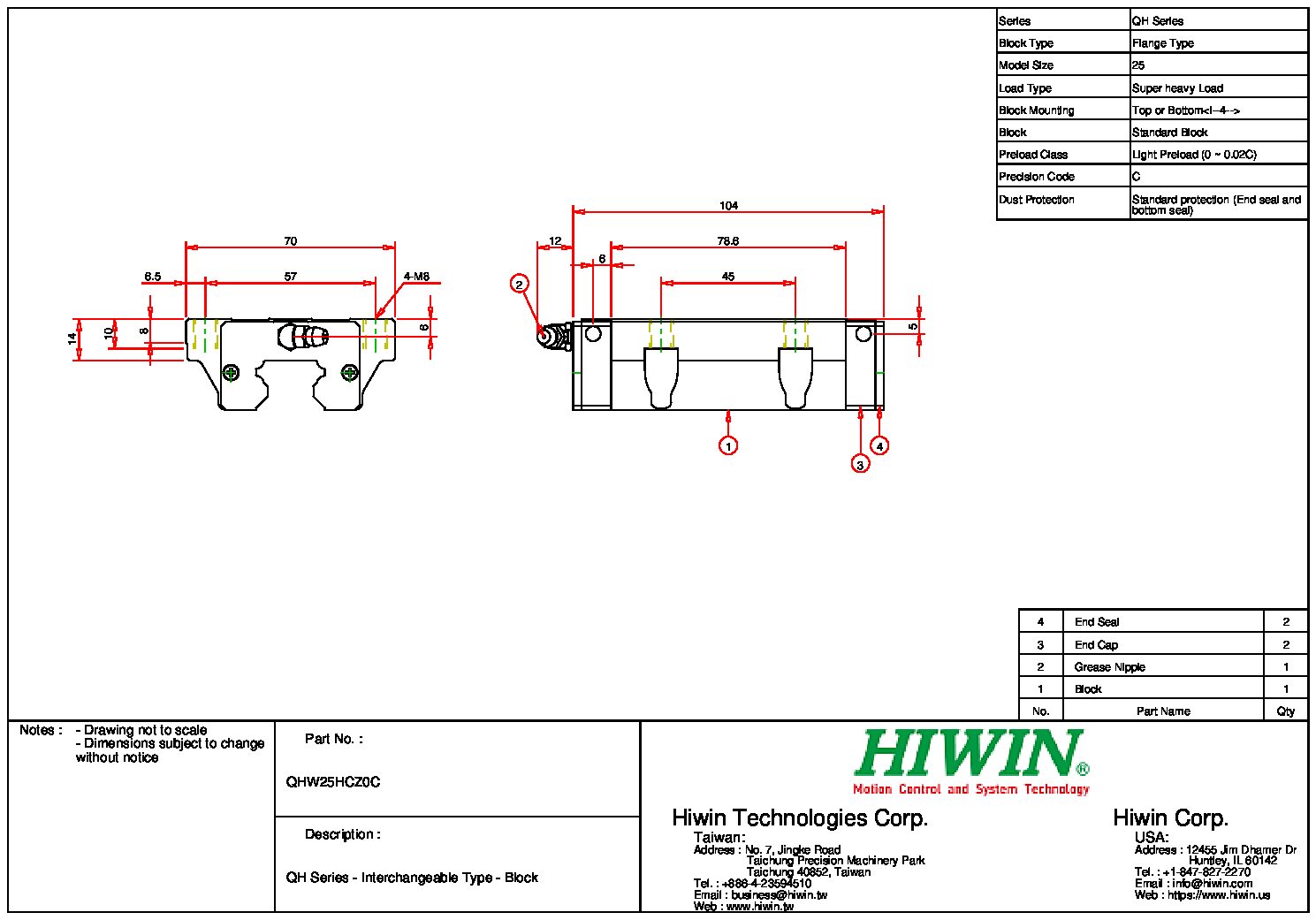

HIWIN QHW-25-HC-Z0-C Block

HIWIN
  • Series: QH Series
  • Block Type: W (Flange Type)
  • Model Size: 25 mm
  • Load Type: H (Super Heavy Load)
  • Block MountingType: C (Mounting from Top or Bottom)
  • Preload Code: Z0 (Light Preload)
  • Precision Code: C (Normal)

6 in stock (can be backordered)

  • HIWIN QH-25-E2 Self-Lubricating Accessory Kit + $10.00
  • Have STOVIL install the add-on kit for you.

The QHW-25-HC-Z0-C in Brief

The HIWIN part number QHW-25-HC-Z0-C is a QH Series Linear Guide Block. The QHW-25-HC-Z0-C is compatible with 25 mm QH (HG) Series Guide Rail. It is suitable for super heavy load duty and has a flange type mounting surface that can accept mounting bolts through the top or bottom of the mounting surface. To help maintain precision for many industrial applications, the QHW-25-HC-Z0-C has a light preload and normal-level precision grade (in relation to other QH Series blocks).

QH Series – Heavy Load Type Linear Guideway, with SynchMotionâ„¢ Technology

The development of QH linear guideway is based on a four-row circular-arc contact. The QH series linear guideway with SynchMotionâ„¢ Technology offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore, the QH linear guideway has broad industrial applicability. In the high-tech industry where high speed, low noise, and reduced dust generation is required, the QH series is interchangeable with the HG series.

Features of QH Series

Low Noise Design

With SynchMotionâ„¢ technology, rolling elements are interposed between the partitions of SynchMotionâ„¢ to provide improved circulation. Due to the elimination of contact between the rolling elements, noise levels due to collision are drastically reduced.

Self-Lubricant Design

The partition is a grouping of hollow ring-like structures formed with a through-hole to facilitate circulation of the lubricant. Because of the special lubrication path design, the lubricant of the partition storage space can be refilled. Therefore, the frequency of lubricant refilling can be decreased.

The QH-series linear guideway is pre-lubricated. Performance testing at a 0.2 C (basic dynamic load) shows that after running 4,000 km no damage was apparent to either the rolling elements or the raceway.

Smooth Movement

In standard linear guideways, rolling elements on the load side of the guide black begin rolling and push their way through the raceway. When they contact other rolling elements they create counter-rotational friction. This results in a great variation of rolling resistance. The QH linear guideway, with SynchMotionâ„¢ technology prevents this condition. As the block starts to move, the rolling elements begin rolling consecutively and remain separated to prevent contact with one another thus keeping the element’s kinetic energy extremely stable in order to effectively reduce fluctuations in rolling resistance.

High Speed Performance

The QH series offers excellent high-speed performance due to the partitions of the SynchMotionâ„¢ structure. They are employed to separate the adjacent balls thereby resulting in low rolling traction and the metallic friction between adjacent balls is eliminated.

QH Series Application Examples

  • Automation Devices
  • High-Speed Transportation Equipment
  • Precision Measuring Equipment
  • Semiconductor Manufacturing Equipment

About STOVIL

STOVIL is an authorized HIWIN distributor and carries the full line of HIWIN’s HG Series, EG Series, WE Series, RG Series, MG Series, QH Series, QE Series, QW Series, and QR Series Linear Guideway products. STOVIL maintains a large and diverse stock of HIWIN Linear Guideway rail, block, and accessory maintenance kits at our facility in Kennesaw, GA. Our HIWIN Linear Guide Rail product offerings are constantly improving to better accommodate the various needs of our customers including standard lengths of each rail profile and configurators that allow cut-to-order custom rail service.

STOVIL has a large line card tailored to the Industrial Automation market. STOVIL carries many of the top brands in product lines such as: Linear Guideways, Actuators, Ball Screws, Motion Control, Safety Products, Miscellaneous Electrical, Cabinets & Enclosures, Maintenance, Robotics, Servo Motors & Drives, Couplers, VFDs, HMIs & PLCs, Gearboxes, Feedback Devices, and Stepper Motors & Drives. These brands include (but are not limited to): Yaskawa, RTA, Brother, SANYO DENKI, Hitachi, Wieland, Häwa/Haewa, ESA Automation, American Control Electronics, Atlanta Drive Systems, HIWIN, Neugart, Rollon, CGI, Bishop Wisecarver, EDrive, R+W Coupling Technology, Tsubaki, Kabel Schlepp, Nadella, Nexen, Schneeberger, and Exlar. STOVIL is always looking for new partnerships to better serve our customers.

Additional information

Shipping Weight 28.360269 oz
Shipping Dimensions 4.914 × 3.276 × 1.56 in
Series

Block Type

W, Flange Type

Model Size (mm)

25

Load Type

Super Heavy Load

Block Mounting

Top or Bottom

Preload Class

Light Preload, Light Preload (0 ~ 0.02C), Z0

Precision Code

C, Normal

Material

Carbon Steel
