The MGW-7-C-Z0-H-M in Brief

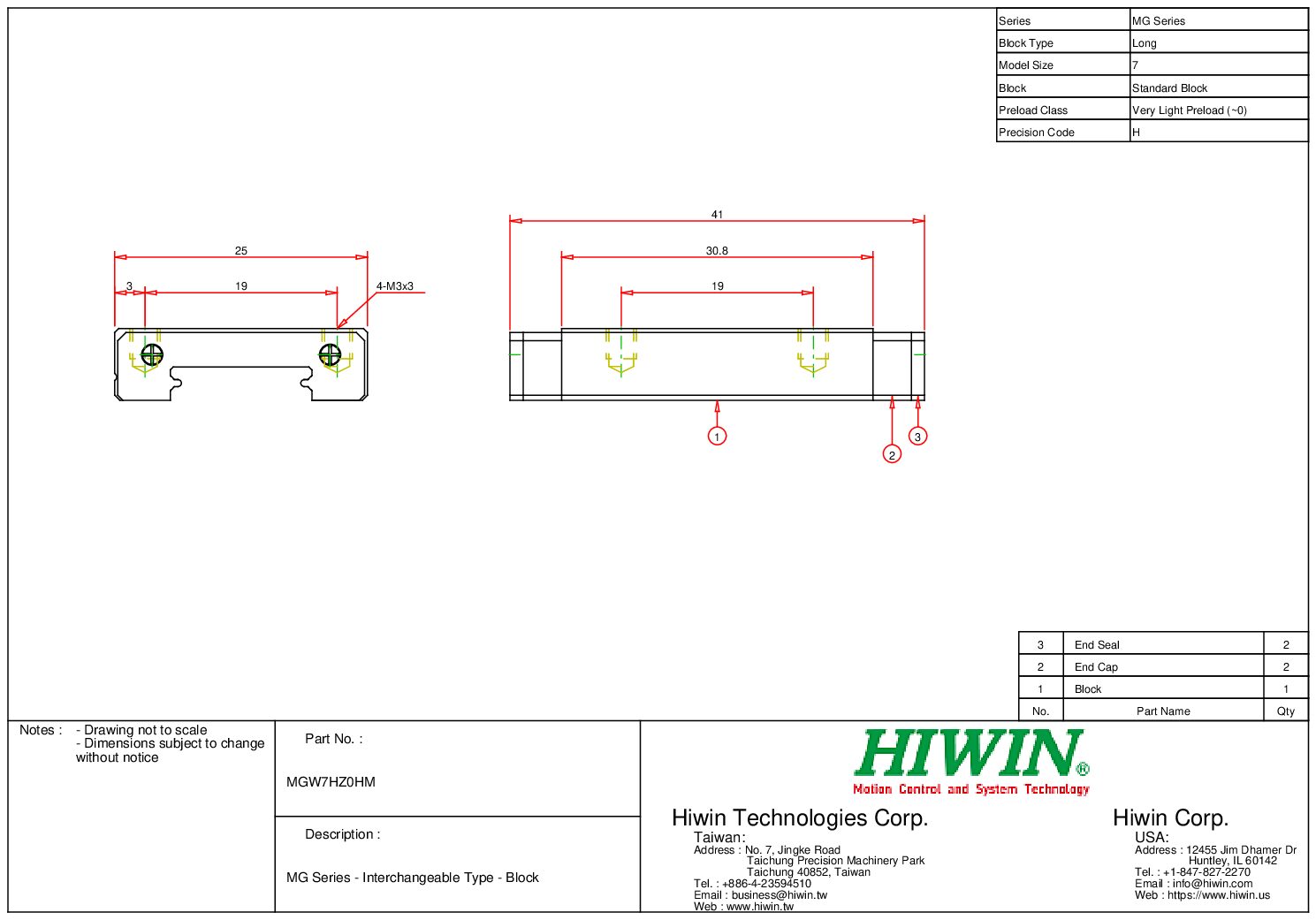

The HIWIN part number MGW-7-H-Z0-H-M is a MG Series, Wide version (MGW), Linear Guide Block. The MGW-7-H-Z0-H-M is compatible with 7 mm MG Series (Wide version) Guide Rail. It is suitable for miniature applications and very light load duty. It has a long form square type mounting surface that can accept mounting bolts through the top of the mounting surface. To help maintain precision for many industrial applications, the MGW-7-H-Z0-H-M has a very light preload and high-level precision grade (in relation to other MG Series blocks).
MG Series – Miniature Linear Guideway
Features of MGW Series
Design features of wide type miniature guideways- MGW:
- The enlarged width design increases the capacity of moment loading.
- Gothic arch contact design has high rigidity characteristics in all directions.
- Specification with ball retainers would avoid ball falling when the blocks are removed from rails.
- Interchangeable types are available in certain sizes and precision grades.
MGW Series Application Examples
- Printer
- Robotics
- Precision Measuring Equipment
- Semiconductor Equipment
