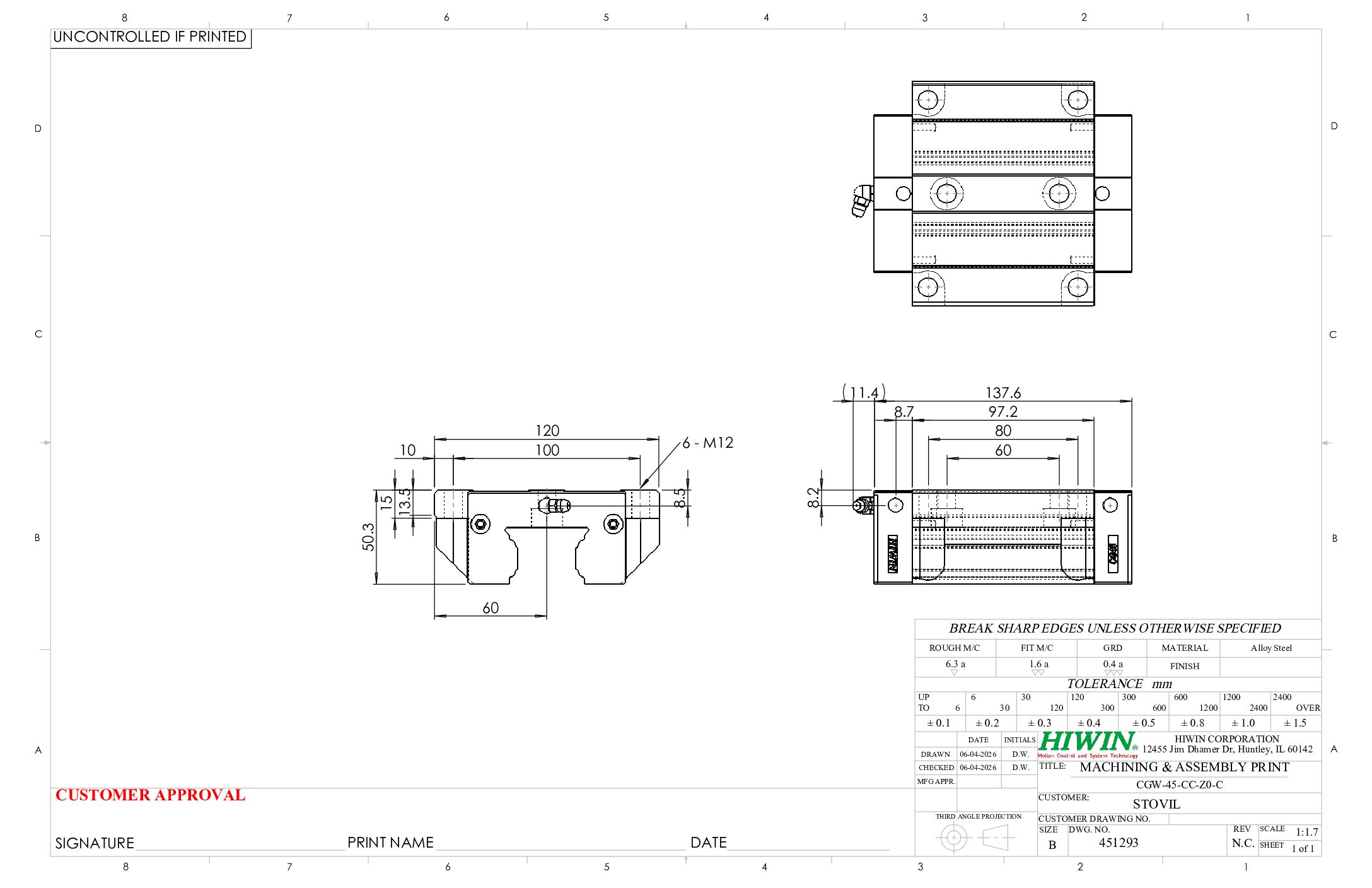

The CGW-45-CC-Z0-C in Brief
The HIWIN part number CGW-45-CC-Z0-C is a CG Series Linear Guide Block. The CGW-45-CC-Z0-C is compatible with 45 mm CG Series Guide Rail. It is suitable for heavy load duty and has a flange type mounting surface that can accept mounting bolts through the top or bottom of the mounting surface. To help maintain precision for many industrial applications, the CGW-45-CC-Z0-C has a light preload and normal-level precision grade (in relation to other CG Series blocks).
CG Series – Superior Rolling Moment with Cover Strip Linear Guideway
CG series linear guideways are a four-row arc-tooth contact type, featuring high rigidity, high load, and high torsional resistance. It also has four-way load characteristics. This specification can be matched with the latest slide dustproof accessories.
Features of CG Series
High Rolling Moment Resistance
CG rail designed with DB type (also known as o arrangement) has longer range of moment compared do DF type (also known as x arrangement). It is suitable for applications that have larger rolling moment.
Optimal Recirculation Path
Better smoothness due to integrated component.
Better Protection
The CG series uses a metal scraper as a standard accessory for protection against high temperature chips and particles.
Latest Dustproof Accessory for Rail
The CG series offers a special stainless cover strip for better dust protection than standard bolt caps.
Full Lubrication
Specially designed for short stroke motion (HIWIN patent design).
CG Series Application Examples
- Machine Centers
- NC Lathes
- Grinding Machines
- Precision Machining Machines
- Heavy Cutting Machines
- Automation Devices
- Transportation Equipment
- Measuring Equipment
- Devices Requiring High Positional Accuracy
