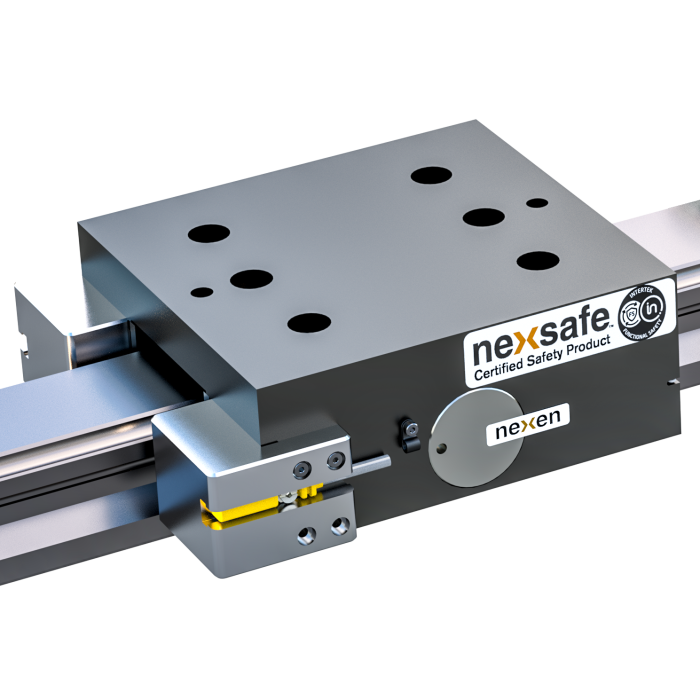

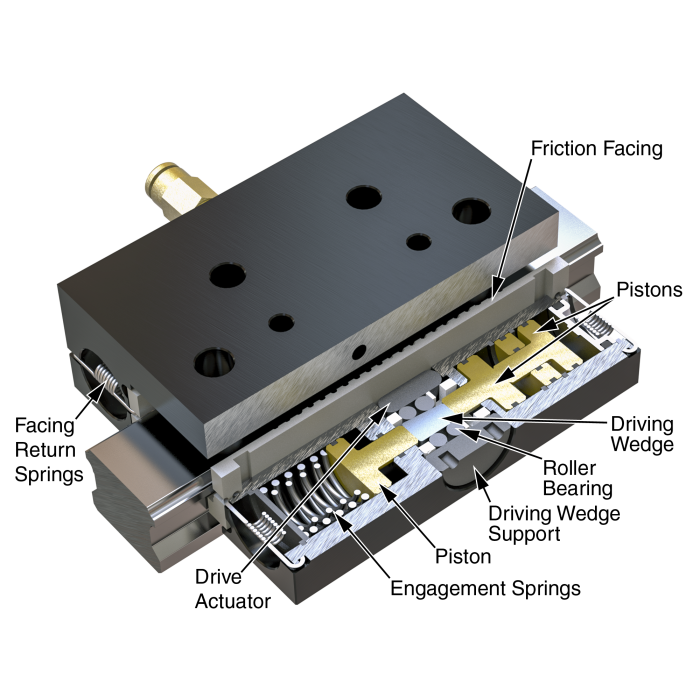

Important Details
- Configuration Notes: NexSafe Rated With Dual Sensors
- Application Considerations: High Holding Force, Low Backlash, Zero Maintenance, NexSafe Certified Safety Product
- Can Be Used For Infrequent Emergency Stops
- For Other Guide Rail Manufacturers Or Guide Rail Series Click HERE.
Have a question about a product or application?
Specifications
- Weight: 2.8 lbs
- Engagement Method: Spring
- Release Method: Air
- Backlash: < 0.20 mm
- Open Or Enclosed Design: Open
- Primary Finish: Black Oxide
- Static b10/b10d Cycle Life: 2000000/4000000
- Min Ambient Temp.: 40 °F
- Max Ambient Temp.: 150 °F
- Max Intermittent Ambient Temp.: 212 °F
- CE Certified: CE
- RoHS Compliant: RoHS
- Approx. Engagement Response Time: 50 ms
- Product Weight: 0.84 kg
- Max Operating Pressure: 6.9 bar
- Min Release Pressure: 5.5 bar
- Air Chamber Volume: 6.800 cm³
- Inlet Size: 4 mm, Plastic Tubing Fitting Screwed Into A M5 Port
- Cable Length: 7 m
- Input Power: 10-30 VDC
- Sensor Connector: Flying Leads
- Number of Sensors: 2
- Sensor Location: Both Sides
- Sensor Frequency: ≤ 1000 Hz
- Manufacturer: HIWIN
- Series: HG
- Size: 25
- Linear Holding Force: 1000 N
- Safety Rating: NexSafe Certified
- Materials Of Construction: Black Oxide
- Sensor Function: Disengagement, Engagement, Engagement or Disengagement
- Sensor 1 Function: Engagement or Disengagement, Depends on user installation
- Sensor 1 Output: Normally Open NPN
- Sensor 1 Type: Magneto-Resistive
- Sensor 2 Function: Engagement or Disengagement, Depends on user installation
- Sensor 2 Output: Normally Open NPN
- Sensor 2 Type: Magneto-Resistive
Dimensions
- Length: 99.2 mm
Notes
- Product Features: Safety Rated, Spring Engaged, Air Released, Sensors
- Restrictions: Suitable For Infrequent E-Stops, Not For Use In Cyclic Dynamic Braking Applications
