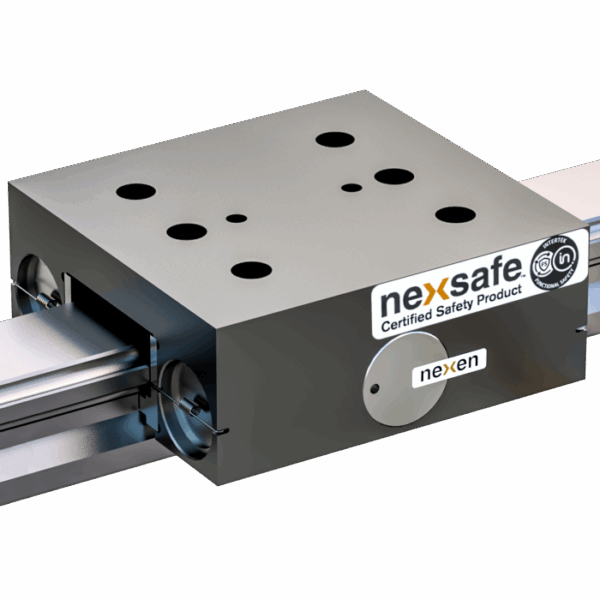

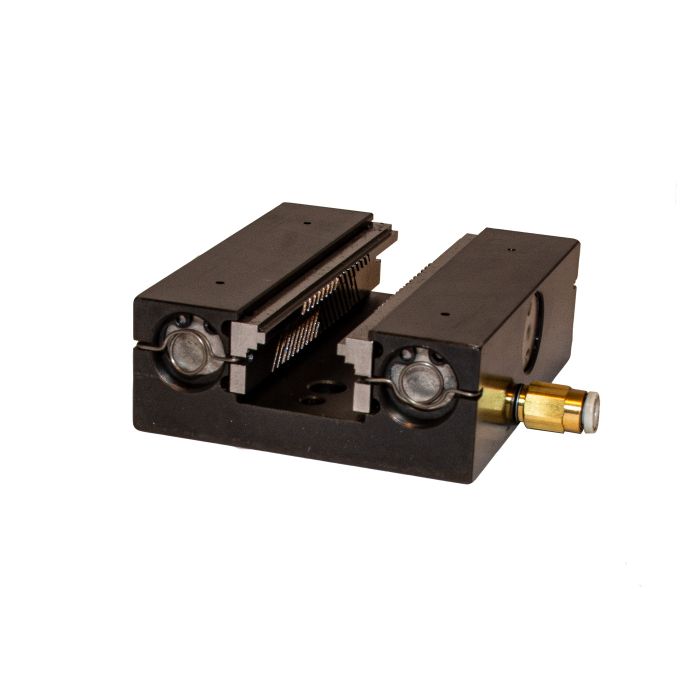

Nexen Spring Brake for HGR-20 Rail

Name: Nexen Spring Brake for HGR-20 Rail
Brand: Nexen
SKU: 968212
Availability: PreOrder

$966.73

Spring Engaged Profile Rail Brake

Nexen References
Product Number: 968212
Product Family: RB 20
Description: SAFE-RB20B-S/P-S-HIWIN-HGR,64 PSI RELEASE

Product Features
Safety Rated, Spring Engaged, Air Released

Available on backorder|Lead time: 3-4 weeks

Important Details

Application Considerations: High Holding Force, Low Backlash, Zero Maintenance, NexSafe Certified Safety Product
Can Be Used For Infrequent Emergency Stops
For Other Guide Rail Manufacturers Or Guide Rail Series Click HERE.

Have a question about a product or application?

Product Features: Safety Rated, Spring Engaged, Air Released
Restrictions: Suitable For Infrequent E-Stops, Not For Use In Cyclic Dynamic Braking Applications

Shipping Weight	32 oz
Shipping Dimensions	5.5 × 5.5 × 5.5 in
Engagement Method	Spring
Release Method	Air
Backlash	<0.2 mm, Low Backlash
Open or Enclosed Design	Open
Primary Finish	Black Oxide
Static b10/b10d Cycle Life	2000000/4000000
Min Ambient Temperature (°F)	40
Max Ambient Temperature (°F)	150
Max Intermittent Ambient Temperature (°F)	212
CE Certified	CE
RoHS Compliant	RoHS
Approximate Engagement Response Time (ms)	44
Max Operating Pressure (bar)	6.9
Min Release Pressure (bar)	4.4
Air Chamber Volume (cm³)	4.7
Inlet Size	4 mm, Plastic Tubing Fitting Screwed Into A M5 Port
Brand Compatibility	HIWIN
Series	RB 20, HG Series
Model Size (mm)	20
Linear Holding Force (N)	576
Safety Rating	NexSafe ISO 13849-1 Safety Certified
Material	Black Oxide
