ESA Automation

ESA Automation specializes in Intelligent Operator Interfaces for Industrial Automation applications. These applications include data entry and display terminals, programmable human machine interfaces (HMI’s), programmable logic controllers (PLCs), and complete machine control workstation solutions.

Name Thumbnail Short Description Add to Cart
ESA Automation EW100

EW-100 is the new HMI generation based on a modern and powerful architecture that connects visualization to supervision and control of your applications.

  • Preloaded Everyware runtime
  • SNTP Server and Client
  • Aluminum Front Side PTFE coating
  • True Flat Touch Screen
  • Status LEDs on front
  • CPU Arm Cortex A8 1 GHz
  • Ram DDR3
  • Internal Memory 3 Gbyte
  • SDHC v2.0 (up to 25 Mbyte/s)
  • High Bright 16 Millions Colors Display
  • P/N INFO
ESA Automation SC Series

Entry-level solution SC HMI equipped with ABS plastic chassis that guarantees great sturdiness and durability.

  • Ethernet port for programming and communication with the field
  • A dual RS232/RS485 serial port with COM0 port functionality, the ESA’s OPEN serial port enables communication with all with any kind of custom solution.
  • High technology combined with wide connectivity.
  • All SC terminals can be programmed thanks to ESA Automation software SmartClick.
  • Sizes: 3.5” (SC103) , 7” (SC107) and 10" (SC110)
  • White LED back-lighting and TRUE-FLAT touch screen
  • P/N INFO

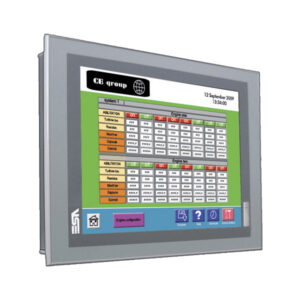

ESA Automation IT Series

The IT family offers a range of products from the 4.3” screens with 32 tones of grey or colors to the powerful 15”.

  • SP1 serial port
  • USB port for configuring a terminal.
  • COM0 port (RS-232), USB port (host type) for connecting peripheral devices, for easy data import/export on a USB pen drive and for printing reports.
  • SP2 serial port, Profibus-DP or ProfiNet interface.
  • 10/100 Mbit Ethernet port (double Ethernet port available on IT110, IT112 e IT115 models).
  • Slot for Secure Digital and MultiMedia Card memory connection.
  • Second slot Compact Flash memory connection (available only on IT110, IT112 and IT115 models).
  • Extended range power supply ..32 Vdc with very low power consumption.
  • ALSO AVAILABLE IN STAINLESS STEEL
  • P/N INFO
ESA Automation VT Series

VT operator terminals ensure maximum availability of drivers and a full coverage of the PLC market and of other devices, such as drives, inverters and temperature controllers, including:

  • Profi bus-DP at 12 Mbit/s (addressing up to 127 terminals).
  • Interbus-S at 500 Kbit/s (addressing up to 127 terminals).
  • CAN (through built-in port or external adapter).
  • Modbus in master and slave mode.
  • TCP/IP protocol support.
  • P/N INFO
ESA Automation VT Series Text & Graphics Terminals

ESA Automation offers a wide range of Text and Graphic Terminals that can satisfy any requirement.

Text Features
  • Alarms, passwords, recipes
  • Resolution 320×250
  • Mathematical functions
  • Two drivers run simultaneously
  • Serial or parallel printing
  • Integrated Profibus-DP and CAN
Graphics Features
  • On-screen graphics
  • Alarms, passwords, recipes
  • Use of Windows® fonts
  • Importation of graphic images in any format
  • Moving graphic objects
  • Two drivers run simultaneously
  • Serial or parallel printing
  • Integrated CAN
ESA Automation IT Series Text & Graphics Terminals

A terminal of IT series equipped with a keyboard

  • 5.7″ TFT Display
  • Resolution 320×250
  • 65,536 colors
  • 18 operative keys
  • 12 function keys
  • 11 alphanumeric keys
  • P/N INFO
ESA Automation VT Series - VT505H

ESA Automation offers Hand Held, portable touch screen terminals.

VT505H Operator terminal with 5,7” graphic STN LCD display, 4 blue levels, 16 rows by 40 characters (320 x 240), Touch-Screen, 640 KB project, software clock, 16 KB recipes, 10 mt cable.

  • Over 150 communication protocols for PLCs, inverters, thermoregulators and other devices.
  • Fieldbuses connections to MPI and CANopen (only VT505H).
  • Up to 150 pages with help, 1500 variables.
  • Multilanguage, including Oriental an Cyrillic characters.
  • Recipe handling, Alarms, 10 levels of Passwords.
  • Moving Graphical objects.
  • Unique programming software in 6 languages.
  • Connection to serial printer.
  • 10 Function Keys.
  • Three-way “operator present” button.
  • Mushroom-shaped start and stop button (lights up with “start”).
  • IP65 protection
  • P/N INFO

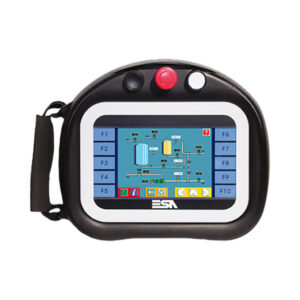

ESA Automation VT Series - VT525H

ESA Automation offers Hand Held, portable touch screen terminals.

VT525H Operator terminal with 5,7” graphic 16-color STN LCD display, 16 rows by 40 characters (320 x 240), Touch-Screen, 960 KB project, clock, 32 KB recipes, 10 mt cable

  • Over 150 communication protocols for PLCs, inverters, thermoregulators and other devices.
  • Up to 150 pages with help, 1500 variables.
  • Multilanguage, including Oriental an Cyrillic characters.
  • Recipe handling, Alarms, 10 levels of Passwords.
  • Moving Graphical objects.
  • Unique programming software in 6 languages.
  • Connection to serial printer.
  • 10 Function Keys.
  • Three-way “operator present” button.
  • Mushroom-shaped start and stop button (lights up with “start”).
  • IP65 protection
  • P/N INFO
